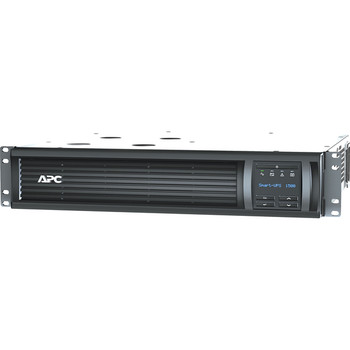

APC SMART-UPS SMC1500-2U 1500VA 120V LCD 2U Rackmount UPS System

Specifications

• Mfr Part Number: SMC1500-2U
• Output
  • Output Power Capacity: 900 Watts / 1500 VA
  • Max Configurable Power: 900 Watts / 1440 VA
  • Nominal Output Voltage: 120V
  • Output Voltage Distortion: Less than 5% at full load
  • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
  • Waveform Type: Sine Wave
  • Output Connections: 6x NEMA 5-15R
• Input
  • Nominal Input Voltage: 120V
  • Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections: NEMA 5-15P
  • Cord Length: 2.44 meters
  • Input voltage range for main operations: 93 - 130V
  • Input voltage adjustable range for mains operation: 85 - 136V
• Batteries & Runtime
  • Battery Type: Maintenance-free sealed lead-acid battery with suspended electrolyte; leakproof
  • Typical recharge time: 3 hours
  • Replacement Battery: APCRBC132
  • RBC Quantity: 1
  • Typical Backup Time at Half Load: 18 minutes (450 Watts)
  • Typical Backup Time at Full Load: 6 minutes (900 Watts)
• Communications & Management
  • Interface Port(s): USB
  • Control Panel: Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery; distinctive low battery alarm; configurable delays
• Surge Protection and Filtering
  • Surge Energy Rating: 455 Joules
  • Filtering: Full time multi-pole noise filtering; 0.3% IEEE surge let-through; Zero clamping response time; Meets UL 1449
• Audible noise at 1 meter from surface of unit: 46 dBA
• Online Thermal Dissipation: 134 BTU/hr
• Regulatory Approvals: CSA, NOM, UL 1778
• Rack Height: 2U
• Color: Black
• Dimension (WxDxH): 432.0 x 475.0 x 89.0 mm
• Weight: 27.82 kg
