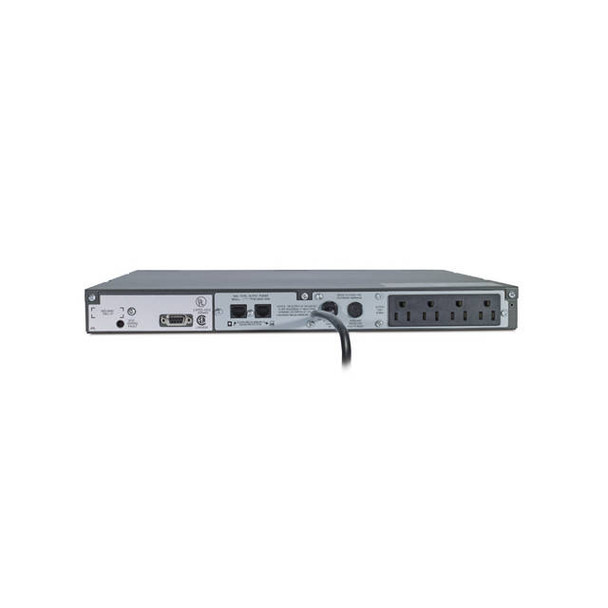

APC Smart-UPS SC SC450RM1U 4-Outlet 280W/450VA 120V 1U Rackmount UPS System

Specifications

• Mfr Part Number: SC450RM1U
• Output:
  • Output Power Capacity: 280 Watts / 450 VA
  • Max Configurable Power: 280 Watts / 450 VA
  • Nominal Output Voltage: 120V
  • Output Voltage Distortion: Less than 5% at full load
  • Output Frequency (sync to mains): 47 ~ 53 Hz for 50 Hz nominal, 57 ~ 63 Hz for 60 Hz nominal
  • Crest Factor: up to 5 : 1
  • Waveform Type: Stepped approximation to a sinewave
  • Output Connections: 4x NEMA 5-15R
• Input:
  • Nominal Input Voltage: 120 V
  • Input Frequency: 50/60 Hz ±3Hz (auto sensing)
  • Input Connections: NEMA 5-15P
  • Cord Length: 1.83 meters
  • Input voltage range for main operations: 82 ~ 144 V
  • Input voltage adjustable range for mains operation: 75 ~ 154 V
• Batteries & Runtime:
  • Battery Type: Maintenance-free sealed Lead-Acid battery w/ suspended electrolyte: leakproof
  • Typical recharge time: 5 hours
  • Replacement Battery: RBC18
  • RBC Quantity: 1
  • Typical Backup Time at Half Load: 19.4 minutes (140 Watts)
  • Typical Backup Time at Full Load: 5.9 minutes (280 Watts)
  • Runtime Chart: Smart-UPS
• Communications & Management:
  • Interface Ports: DB-9, RS-232
  • Control panel: LED status display w/ On Line; On Battery; Replace Battery and Overload indicators
  • Audible Alarm: Alarm when on battery; distinctive low battery alarm; overload continuous tone alarm
  • Emergency Power Off (EPO): Optional
• Surge Protection and Filtering:
  • Surge energy rating: 400 Joules
  • Filtering: Full time multi-pole noise filtering; 0.7% IEEE surge let-through; zero clamping response time; meets UL 1449
  • Data Line Protection: RJ-11 Modem/Fax protection (four wire dual line), RJ45 10/100 Base-T Ethernet protection
• Regulatory Approvals: CSA, FCC Part 15 Class A, UL 1778
• Color: Grey
• Rack Height: 1U
• Dimension (WxDxH): 432 x 385 x 44 mm
• Weight: 10.77 kg
