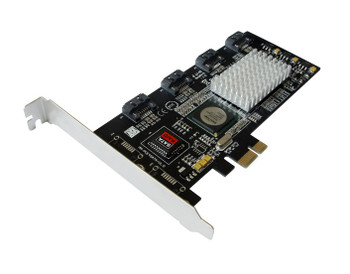

Adaptec RAID 6405E 4-Port PCI-Express 2.0 x1 SAS/SATA RAID Controller Card

SpecificationsMfr Part Number: 2270800-RFeatures:6 Gb/s throughput at each portPMC-Sierra PM8013 Dual Core RAID on Chip (ROC)SAS 2.0 interfaces and PCIe Gen 2 Host ConnectionSupports up to 4 SATA or SAS devicesEnclosure management support via LED header and SES2/ SGPIOIntelligent Power Management - Reduces power and cooling costs by as much as 70%Hybrid RAID 1 & 10: SSD + HDD for Maximum Performance and ReliabilityCache Memory: 128MBRAID Levels: RAID levels 0, 1, 10, 1E and JBODBus System Interface Type: PCI-Express 2.0 x1Internal Connectors: 1x Internal SFF-8087 Mini SASData Transfer Rate: 6 Gb/s per portKey RAID Features: Supports up to 4 (6405E) or 8 (6805E) SATA or SAS devicesRAID levels 0, 1, 10, 1E and JBODQuick initializationOnline Capacity ExpansionCopyback Hot SpareDynamic caching algorithmNative Command Queuing (NCQ)Background initializationHot-plug drive supportRAID Level MigrationHot spares - global, dedicated, and pooledAutomatic/manual rebuild of hot sparesSES and SAF-TE enclosure managementConfigurable stripe sizeS.M.A.R.T. supportMultiple arrays per disk driveDynamic sector repairStaggered drive spin-upBootable array supportOptimized Disk UtilizationManagement Utilities: Adaptec Storage Manager (ASM): Java-based GUI Management UtilityRemote configuration, monitoring & notificationASM OS Support: Windows, Linux, SCO, Solaris, FreeBSDMicrosoft VDS SupportSNMP, SMTPRemote firmware updatesARCCONF:Command Line InterfaceAdaptec BIOS Utility (ACU): BIOS level configuration utilityFlashable BIOS supportOperating Voltage: 0.11 amp @ 3.3V; 0.75 amp @ 12V measured on PCIe Gen2 systems with 6G drivesOperating Systems: Microsoft Windows; Red Hat Linux; SUSE Linux; Fedora; Debian Linux; Ubuntu Linux; Sun Solaris; FreeBSD; VMware ESXRegulatory Certification: CE, FCC, UL, C-tick, VCCI, KCCForm Factor: MD2 Low-ProfileDimensions: 2.5 x 5.1 inch / 64.0 x 130.0 mm
