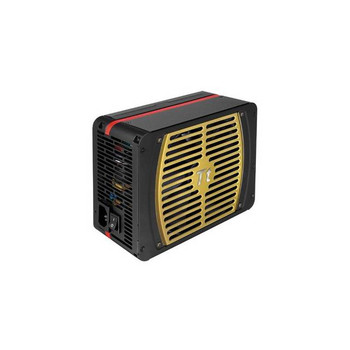

Thermaltake Toughpower Grand PS-TPG-1200FPCGUS-1 1200W 80 PLUS Gold ATX12V 2.3 & EPS12V Power Supply (Black)

Specifications

• Mfr Part Number: PS-TPG-1200FPCGUS-1
• Features:
  • Thermaltake Toughpower Grand 1200W
  • Pure Aesthetic Outer Chassis
  • 80 PLUS Gold Certified and Haswell Ready
  • Fully modular cable design
  • 100% High Quality Japanese Capacitors
  • Flat Modular Cables
  • Massive and Dedicated +12V Output
• Maximum Power: 1200 Watts
• Input:
  • Voltage: 100 VAC ~ 240 VAC
  • Current: 15A
  • Frequency Range: 50 ~ 60 Hz
• Form Factor: Intel ATX 12V V2.3 & EPS 12V standards
• Efficiency: 87-90% efficiency @ 20-100% load
• Hold-up Time: 16msec (minimum) @ 75% of full load at 115 / 230Vac input
• Power Good Signal: 100 ~ 500 ms
• Power Factor Correction: Active PFC
• Fan: 140mm Fan
• MTBF: 120,000 hours
• Output: +3.3V @ 25A; +5V @ 25A; +12V @ 100A; -12V @ 0.3A; +5VSB @ 4.0A
• Connectors: 1x 24pin Main Connector, 1x 4+4pin ATX 12V Connector, 1x 8pin ATX 12V Connector, 8x 6+2pin PCI-Express Connectors, 12x SATA Connectors, 11x 4pin Peripheral Connectors, 2x 4pin FDD Adaptor
• Safety Approval: UL/ TUV/ CE/ FCC/ GOST certification
• Color: Black
• Dimensions (WxDxH): 150.0 x 180.0 x 86.0 mm
