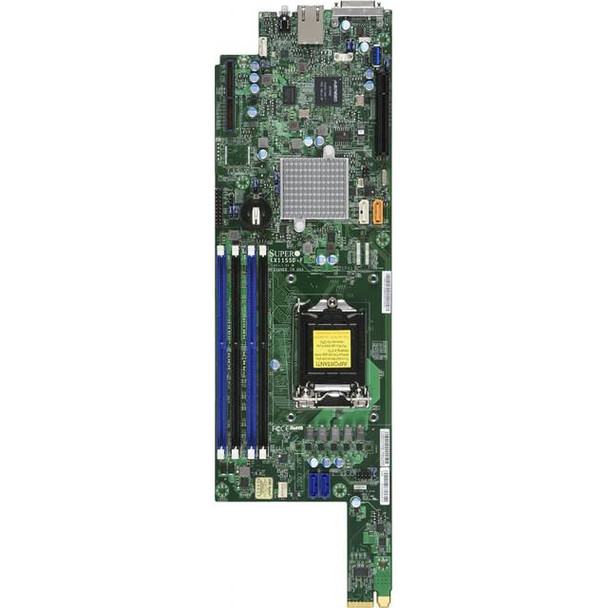

Supermicro X11SSD-F-P LGA1151/ Intel C236/ DDR4/ SATA3&USB3.0/ V&GbE/ Proprietary Server Motherboard

Specifications

• Mfr Part Number: X11SSD-F-P

• CPU: LGA1151
  • Supports Intel Xeon E3-1200 v5 Processor

  • Supports 6th Generation Intel Core i3/ Pentium/ Celeron Processors

• Chipset: Intel C236

• Memory: 4x 288pin DDR4-2133/ 1866/ 1600MHz DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB

• Slots: 1x PCI-Express 3.0 x8 Slot (Micro Low Profile) or 1x PCI-Express 3.0 x8 Slot (runs at x4)

• SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10

• Video: ASPEED AST2400 BMC Graphics

• LAN: N/A

• Ports: 3x USB 3.0 Ports (2 via header, 1 Type A), 1x VGA Port, 1x Dedicated IPMI LAN Port

• Form Factor: Proprietary, 4.75 x 16.00 inch / 12.07 x 40.64 cm

• RoHS Compliant
