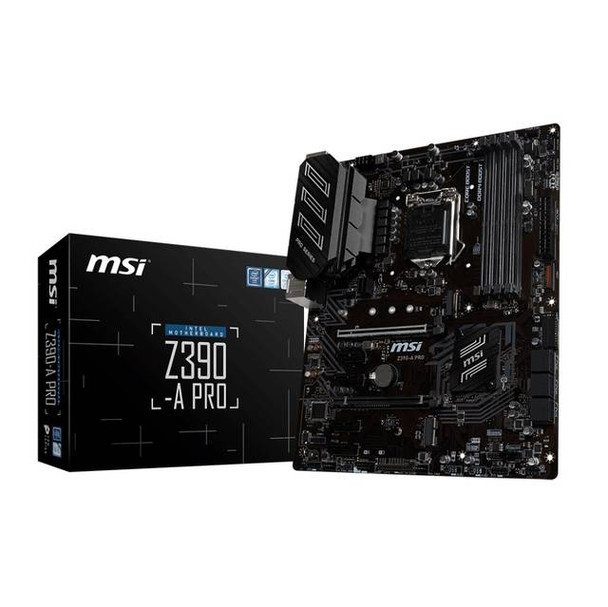

MSI Z390-A PRO LGA1151/ Intel Z390/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.1/ M.2/ A&GbE/ ATX Motherboard

Specifications

• Mfr Part Number: Z390-A PRO
• CPU: LGA1151
  • Supports 9th/ 8th Generation Intel Core/ Pentium Gold/ Celeron Processors
• Chipset: Intel Z390
• Memory: 4x DDR4-4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz Slots, Dual Channel, Non-ECC, un-buffered, Max Capacity of 64GB
• Slots: 2x PCI-Express 3.0 x16 Slots, 4x PCI-Express 3.0 x1 Slots
• Multi-Graphics: Supports AMD 2-Way CrossFireX Technology

• Storage:
  • SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
  • M.2: 1x M.2 Port (Key M), supports PCIe 3.0 x4 and SATA3, 2242/ 2260/ 2280/ 22110 storage devices
• Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC
• LAN: Intel I219-V Gigabit Ethernet Controller
• Ports: 2x USB 3.1 Gen 2 Ports (1 Type-A rear, 1 Type-C rear), 6x USB 3.1 Gen 1 Ports (2 Type-A rear, 4 via headers), 6x USB 2.0 Ports (2 Type-A rear, 4 via headers), 1x PS/2 Combo Port, 1x VGA Port, 1x DVI-D Port, 1x DisplayPort, 1x RJ45 LAN Port, Audio I/O Jacks

• Power Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector, 1x 6-pin ATX 12V Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
