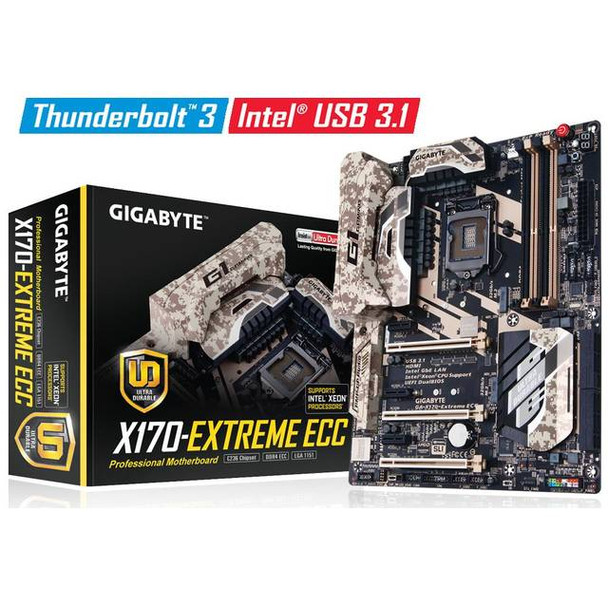

GIGABYTE GA-X170-EXTREME ECC LGA1151/ Intel C236/ DDR4/ 3-Way CrossFireX & 2-Way SLI/ SATA3&USB3.1/ M.2&SATA Express/ A&GbE/ ATX Motherboard

SpecificationsMfr Part Number: GA-X170-EXTREME ECCCPU: LGA1151Supports Intel Xeon E3-1200 v5 ProcessorSupports Intel Core i3/ Pentium/ Celeron ProcessorsChipset: Intel C236Memory: 4x DDR4-2133 MHz DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GBSlots: 3x PCI-Express 3.0 x16 Slots (one runs at x8, one runs at x4), 3x PCI-Express 3.0 x1 SlotsMulti-Graphics: Supports 3-Way/ 2-Way AMD CrossFireX and 2-Way NVIDIA SLI TechnologyStorage:SATA: 8x SATA3 Ports, Six Support RAID 0, 1, 5, 10; 3x SATA Express PortsM.2: 2x M.2 Ports, Support type 2242/ 2260/ 2280 SATA and PCIe x4/ x2/ x1 SSDAudio: Creative Sound Core 3D chip 5.1-Channel High Definition Audio CODECLAN: Intel Gigabit Ethernet Controller, Rivet Networks Killer E2400 Gigabit Ethernet ControllerPorts: 2x USB 3.1 Port (1 Type-A, 1 Type-C), 9x USB 3.0/2.0 Ports (5 rear, 4 via headers), 4x USB 2.0/1.1 Ports (4 via headers), 1x PS/2 Keyboad/Mouse Port, 1x DisplayPort, 1x HDMI Port, 1x Optical S/PDIF Out, 2x RJ45 LAN Ports, Audio I/O JacksPower Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power ConnectorForm Factor: ATX, 30.5 x 24.4 cm
