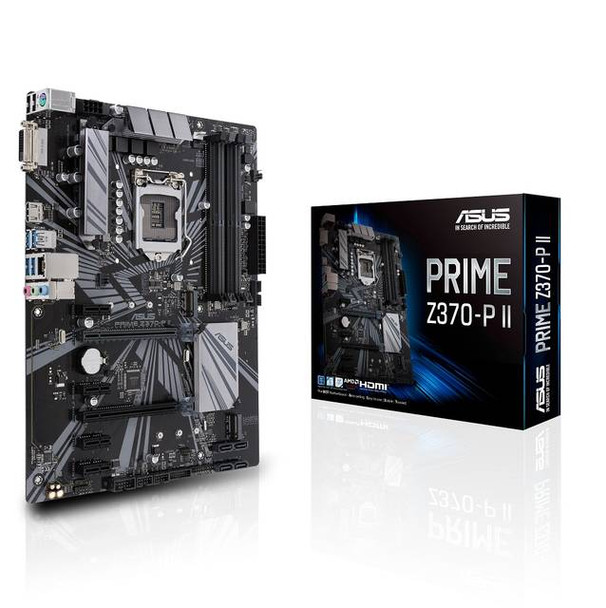

Asus PRIME Z370-P II LGA1151/ Intel Z370/ DDR4/ CrossFireX/ SATA3&USB3.1/ M.2/ A&GbE/ ATX Motherboard

SpecificationsMfr Part Number: PRIME Z370-P IICPU: LGA1151Supports 8th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron ProcessorsSupports 14nm CPUSupports Intel Turbo Boost Technology 2.0Chipset: Intel Z370Memory: 4x DDR4-4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GBSlots: 1x PCI-Express 3.0/2.0 x16 Slot (support x16, x8/x4+x4), 1x PCI-Express 3.0/2.0 x16 Slot (runs at x4), 4x PCI-Express 3.0/2.0 x1 SlotsMulti-Graphics: Supports AMD CrossFireX TechnologyStorage:SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10M.2: 2x M.2 Ports (w/ M Key), supports type 2242/ 2260/ 2280 storage devices & SATA & PCI-Express x4 modeAudio: Realtek ALC887 8-Channel High Definition Audio CODECLAN: Realtek 8111H Gigabit Ethernet ControllerPorts: 8x USB 3.1 Gen 1 Ports (4 Type A rear, 4 at mid-board), 6x USB 2.0/1.1 Ports (2 rear, 4 at mid-board), 1x PS/2 keyboard/mouse combo port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O JacksPower Connector: 1x 24-pin EATX Power Connector, 1x 8-pin EATX 12V Power ConnectorForm Factor: ATX, 12.0 x 9.1 inch / 30.5 x 23.1 cm
