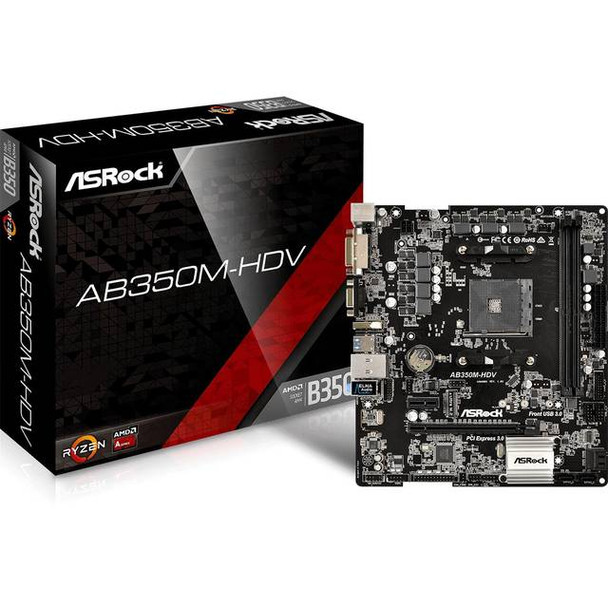

ASRock AB350M-HDV Socket AM4/ AMD B350/ DDR4/ SATA3&USB3.0/ M.2/ A&GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number: AB350M-HDV
• CPU: Socket AM4
  • Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)
  • Digi Power design
  • 7 Power Phase design
  • Supports CPU up to 65W
• Chipset: AMD Promontory B350
• Memory: 2x DDR4-2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x1 Slot
• Storage:
  • SATA: 4x SATA3 Ports, Support RAID 0, 1, 10
  • M.2: 1x Ultra M.2 Port (M Key) supports type 2242/ 2260/ 2280 M.2 SATA3 & M.2 PCI-Express 3.0 x4 (32 Gb/s) (with Ryzen Series CPU) or PCI-Express 3.0 x2 (16 Gb/s) (with A-Series APU)
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• Video: Integrated AMD Radeon R7/R5 Series Graphics w/ 2GB Max Shared Memory
• LAN: Realtek RTL8111GR PCI-Express x1 Gigabit Ethernet Controller
• Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Mouse/Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24-pin ATX Power Connector, 1x 4-pin 12V Power Connector
• Form Factor: MicroATX, 9.1 x 8.1 inch / 23.1 x 20.6 cm
